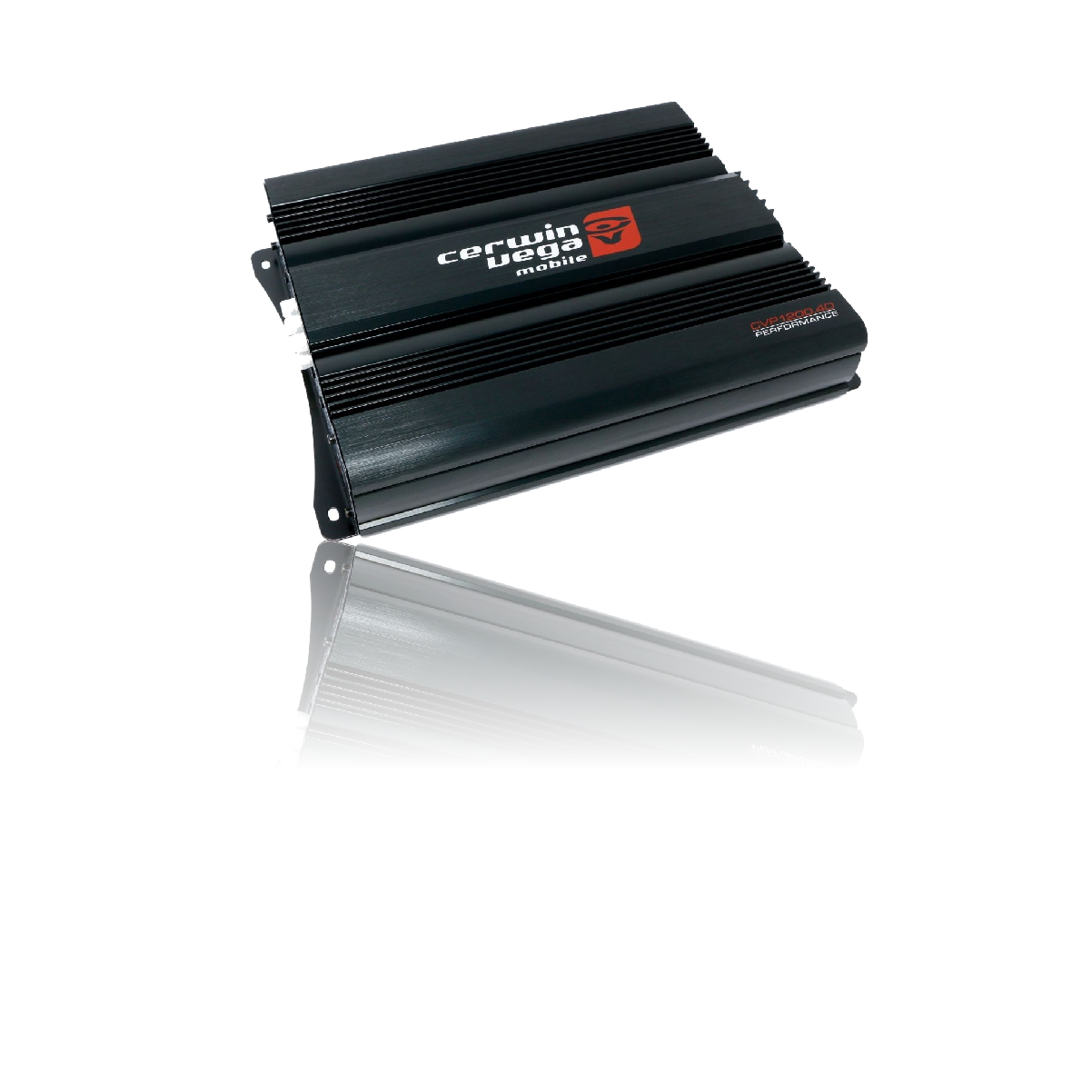

CVP1200.4D – Cerwin Vega – 4-Channel 1200W Bridgeable Class D Amplifier

CVP1200.4D - Cerwin Vega - 4-Channel 1200W Bridgeable Class D Amplifier
CVP1200.4D - Cerwin Vega - 4-Channel 1200W Bridgeable Class D Amplifier - Image 2

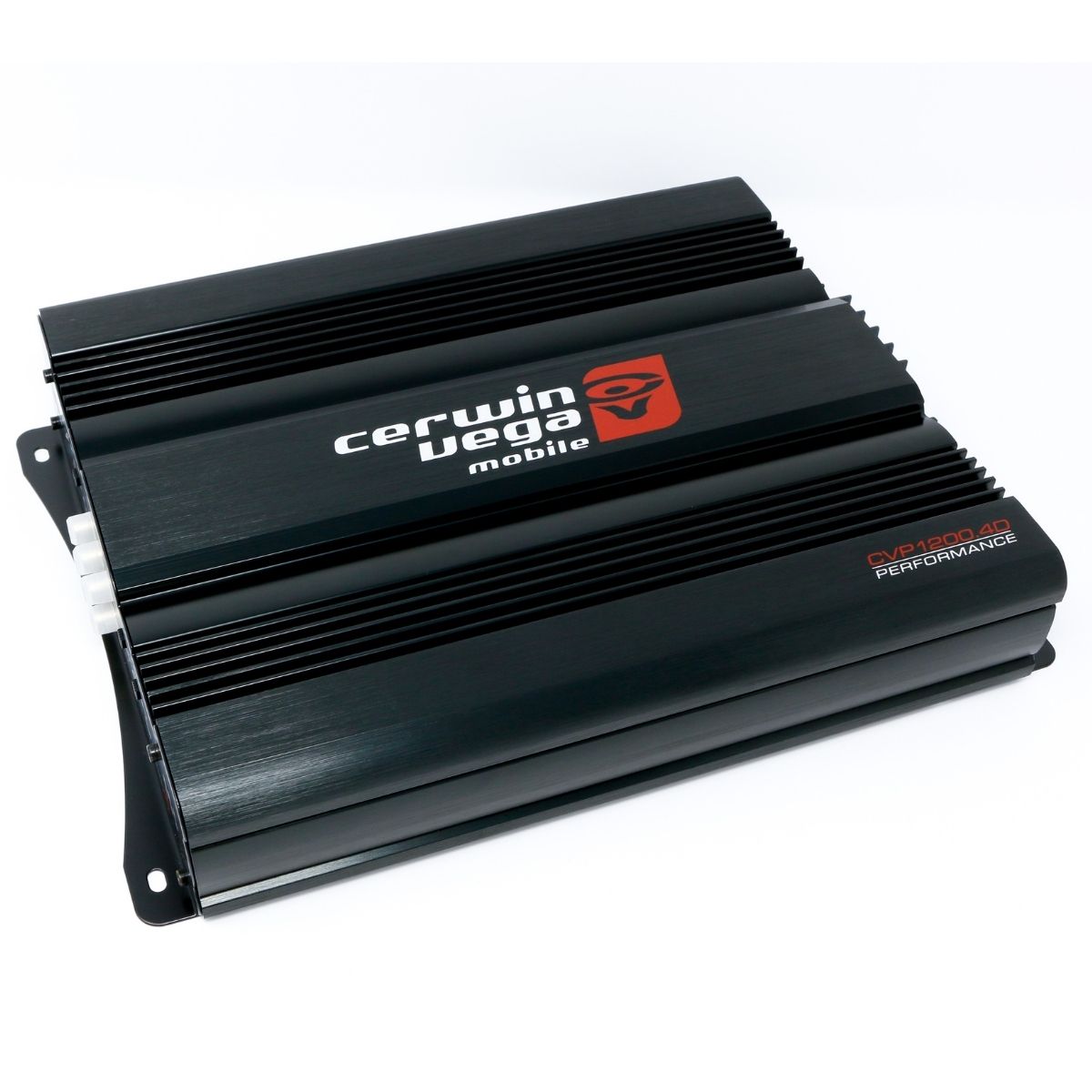

CVP1200.4D - Cerwin Vega - 4-Channel 1200W Bridgeable Class D Amplifier - Image 3

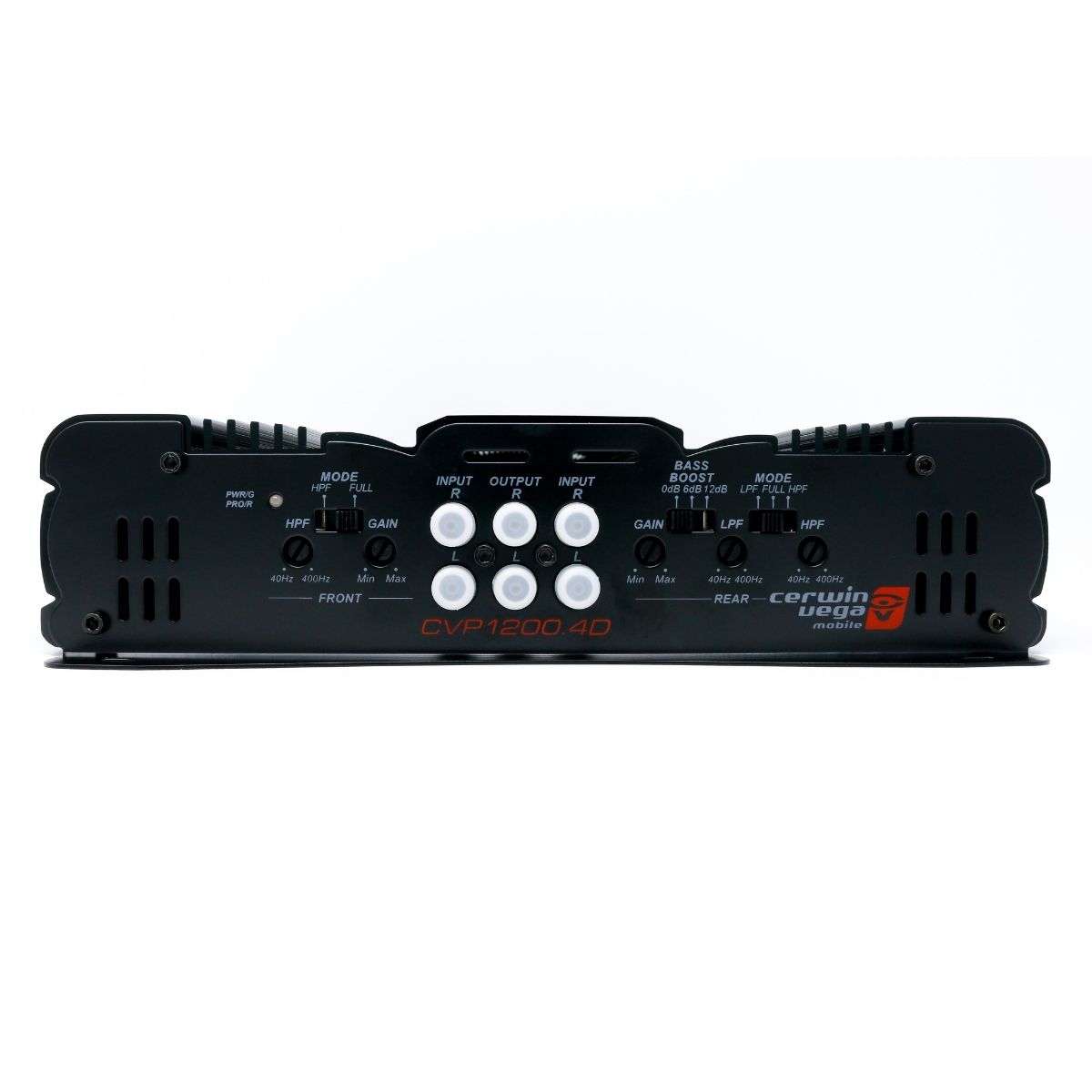

CVP1200.4D - Cerwin Vega - 4-Channel 1200W Bridgeable Class D Amplifier - Image 4

CVP1200.4D – Cerwin Vega – 4-Channel 1200W Bridgeable Class D Amplifier

R3499,00 Incl. Vat

Out of stock

SKU: CVP1200.4D Categories: , ,

Pay over 3 EQUAL zero-interest instalments of R1166,34 with PayJustNow.
Find out how...

HOW IT WORKS

PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and you get your goods as if you have paid in full. The remaining two instalments are debited on your specified instalment date.

Browse online or in-store and proceed to check-out

Choose PayJustNow as your payment method

Create your account and get an instant approval decision

Complete your transaction

WHAT YOU WILL NEED

BE OVER 18
YEARS OLD

BE AN SA
RESIDENT

HAVE A DEBIT OR
CREDIT CARD

HAVE A VALID
EMAIL ADDRESS

0% INTEREST. 3 PAYMENTS. NO STRESS.

WHY PAY ANY OTHER WAY?

Description

Latest High-Efficiency Class A/B Topology. Compact Size with Ambient backlit logo. RCA “Pass Thru” output for easy system expansion. Fully Variable Crossovers (12dB per octave). Handles HI and LO level input to 12V. 2 Ω Stable Stereo and 4Ω Mono (CH3/4) for 3 CH mode. Proprietary Vega Bass Boost EQ Up To 12dB.

Additional information

Weight 3,15 kg
Dimensions 36 × 26 × 8 cm
Brand

Product Type

Channels

Power Rating

Specifications

Cta-2006 Compliant
Number of Channels
1
Total Power
(Sum of Rated Power)
1 Watts
Rated Power
(RMS Continuous Power)
400 Watts x 1 @ 4Ω
800 Watts x 1 @ 2Ω
1200 Watts x 1 @ 1Ω
Dynamic Power
(PVC/PowerCube®)
489 Watts x 1 @ 4Ω
889 Watts x 1 @ 2Ω
1389 Watts x 1 @ 1Ω
Bridgeable
No
Frequency Response
20 Hz – 250 Hz
Input Sensitivity
Low-Level: 150 mV – 4 V
High-Level: 450 mV – 12 V
Circuit Topology Class
Class-D
Efficiency (average)
> 80%
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
1Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz – 250 Hz @ 12dB/Octave ButterworthInfrasonic:
15 Hz – 40 Hz @ 12dB/Octave Butterworth
Remote Controls
Yes
Visual Indicators
Power/Protect
C.L.E.A.N. In
C.L.E.A.N. Out
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 – 16 VDC
Recommended Fuse
(not included)
200 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
121 A
Dimensions (H x W x D)
(4.9 cm x 17.3 cm x 28.5 cm)

Warranty

12 Month warranty
